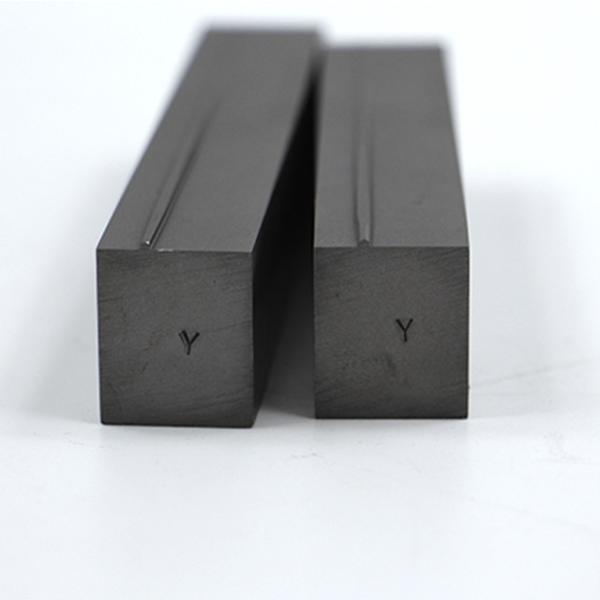

Mold Mould Die For Screw Thread Making Machine Rolling

• Material: DC53+N(ion nitriding treatment is 30% higher than the quality of ordinary products), M2, H9
• The section size or plates size: Length*Height*thickness(for example, 90/105x25x25mm)
• Long life of the thread rolling die

Henghui is specialized in the making of screw thread rolling dies, made of best raw materials available in the market. These screw thread rolling dies are designed professionally by our engineers per customers’ specifications or work pieces. Each staff tries try his best to have screw thread rolling dies with high accuracy, high strength and high stability by high skills and strict quality control system.Therefore the screw thread rolling dies life is longer than dies produced by other companies based on the same materials and the same price or even lower price.

Henghui manufacture thread rolling dies taking the needs of our customers very much into account. The range of thread rolling dies covers most of threading machines on the market. Likewise, we cover all kinds of screw threads.

We also manufacture custom thread rolling dies to customer specifications. You can see examples of different designs and shapes in the product details page.

Furthermore, we advise our customers in choosing the type of thread rolling die that best suits their needs. You can send your technical inquiries to us, and we will be in touch within 24 hours to offer you the best solution.

Please specify the details of thread rolling dies as follows when you inquire or order;

(1) the material of thread rolling die you need;

(2) the type of thread rolling die; machine screw, self tapping screw, wood screw, drywall screw, chipboard screw , duck screw and so on;

(3) the fact thread length of screw that you use our thread rolling die to produce;

(4) the blank diameter;

(5) the section size or plates size: Length*Height*thickness(for example, 90/105x25x25mm);

(6) the special specification out of standard is also available, but necessarily with a drawing for reference.

Chongqing Henghui Precision Mold Co., Ltd. is a professional enterprise that specializes in the production of screw molds. With a strong technical team, we ensure professional production and maintain strict quality control. Our main production includes standard and non-standard special screw molds.

We can also produce and customize molds based on our customers' requirements, such as straight body, shrinking die, closing die, strong binding die, as well as multilateral main dies such as triangle, hexagon, and more. Additionally, we offer carbide upper and lower punching and punching sleeves, sleeves, combined die sleeves, cutters, thread rolling dies, Six-Lobe thimbles, Six-Lobe protection sleeves, and punching needles with various specifications like straight body, step, tail hole, and more.

We also provide screw forming molds such as punch, thread plate (thread rolling die), and many other specifications. Our molds cover a wide range of products, including bolt molds, automobile fastener molds, wheel hub bolt molds (rear wheel hub bolt, wheel hub bolt, fixed bolt, wheel bolt, and tire bolt), high-strength fastener molds for wind power (tower bolt mold, complete machine bolt mold, and blade bolt mold), as well as high-strength bolt molds for steel structures in construction.

Компания "Хэнхуэй прецизионная пресс-форма" была основана в 2009 году. Мы специализируемся на производстве и продаже пресс-формы для крепежных изделий, заклёпочных гаек, микропрецизионных винтов, а также реализует оборудование для крепежной промышленности. Производственные базы компании расположены в провинциях Чжэцзян, Гуандун и городе центрального подчинения Чунцин.

Chongqing Henghui Precision Mold Co., Ltd. is equipped with state-of-the-art machinery, including CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machines, CNC EDM machines, CNC Cutting Machines, Milling Andam Drilling Machines, and more. Additionally, we have a wide range of testing equipment such as Rockwell Hardness Testers, Projectors, and 3D Image Measuring Instruments.

At Henghui, we prioritize the use of high-quality tungsten carbide material and employ professional vacuum heat treatment techniques. Our expertise lies in the design, manufacturing, and supply of precision molds for clients in the cold heading and hot upsetting industries. Our molds are manufactured to adhere to the highest standards, with a relative standard deviation controlled within 0.005mm and concentricity within 0.01mm.

We strictly follow the ISO9001:2015 quality management system requirements in all our operations, ensuring that we consistently deliver timely and high-quality services to our customers. As a result, our products have been exported to Southeast Asia, Europe, and the United States.

Our core principles revolve around putting the customer first, prioritizing quality, embracing technology, and providing dedicated service. We warmly welcome you to engage in business negotiations with us, where we can demonstrate our commitment to excellence.

Factory Equipment:
